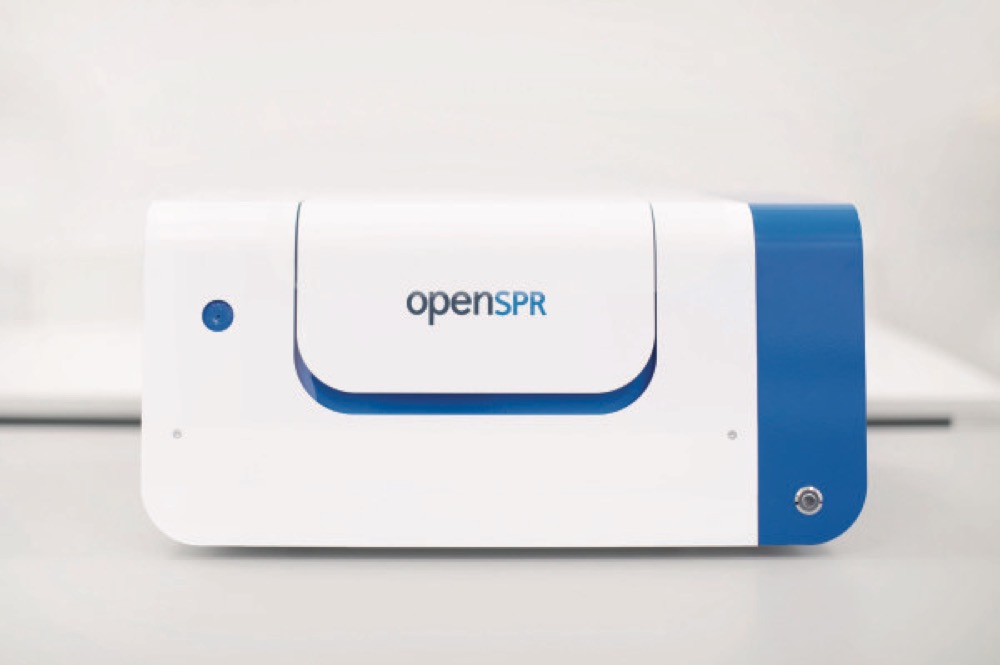

Nicoya – OpenSPR Instrument
OpenSPR is the world’s only benchtop surface plasmon resonance (SPR) instrument. It provides high quality, label-free interaction analysis for a fraction of the cost of existing solutions. Our unique nano-structured sensor surface uses localized SPR (LSPR) to deliver repeatable, highly sensitive kinetic data.

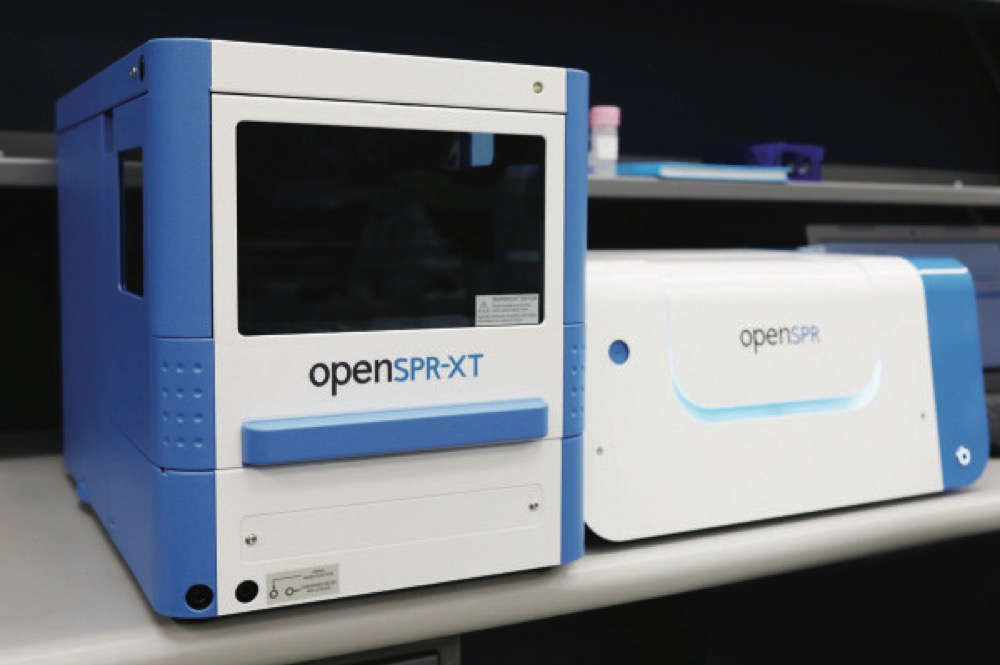

OpenSPR-XT is built with our cutting-edge and affordable nanotechnology biosensor platform. It has been seamlessly integrated with our robust autosampler system to allow for fully automated, 24/7 operation.
Compatible With
- Proteins
- Lipids
- Carbohydrates
- Antibodies
- Nucleic acids
- Small molecules
- Cells
- Viruses
- Nanoparticles & more
Applications
- Kinetics/affinity characterization
- Competition assays
- Target identification
- Epitope mapping
- Screening
- Yes/No binding
- Concentration
Available Models
Technical Specifications
| Performance | |
|---|---|
| Association rate (kon) | 1×103–1×107 1/M*s |
| Dissociation rate (koff) | 0.1–1×10-5 1/s |
| Affinity range (KD) | mM-pM |
| Hardware | |
| Number of channels | 2 |
| Flow rate | 5–200 μL/min |
| Injection | Semi-Automated |
| Injection volume | 5–100 μL |
| Autosampler | Optional upgrade to OpenSPR-XT |
| Temperature range | 4°C-40°C (max 10°C < ambient) |
| Temperature precision | +/- 0.25°C |
| Buffer switching | 3 ports available, automated switching |
| Instrument size | 46 x 34 x 21 cm |
| Weight | 42 lbs |
| File output | CSV, Tracedrawer |
Obtain publication-quality binding kinetics & affinity data on your benchtop.
Technical Specifications
| Performance | |
|---|---|
| Association rate (kon) | 1×103–1×107 1/M*s |
| Dissociation rate (koff) | 0.1–1×10-5 1/s |
| Affinity range (KD) | mM-pM |
| Hardware | |
| Number of channels | 2 |
| Flow rate | 5–200 μL/min |
| Injection | Automated |
| Injection volume | 5–100 μL |
| Sample capacity | 2x 96 well plates, 2/10 mL vials |
| Sample temperature | Cooled from 20°C-4°C |
| Unattended run time | 24 hours |
| Temperature range | 4°C-40°C (max 10°C < ambient) |
| Temperature precision | +/- 0.25°C |
| Buffer switching | 3 ports available, automated switching |
| Instrument size | 78 x 55 x 53 cm |
| File output | CSV, Tracedrawer |
Maximize your productivity with fully automated, 24/7 operation of our benchtop SPR.
Featured Product
OpenSPR for biotechnology. Get started on your experiments in a matter of hours.
OpenSPR is user-friendly and has versatile applicability. In smaller companies, the OpenSPR allows researchers to finish off their full experimental workflows at a low cost. In larger companies, the OpenSPR is easily integrated alongside their other assays.
OpenSPR is ideal for:
- Lead Optimization
- Quality control
- Drug discovery
- Validation
- Feasibility
