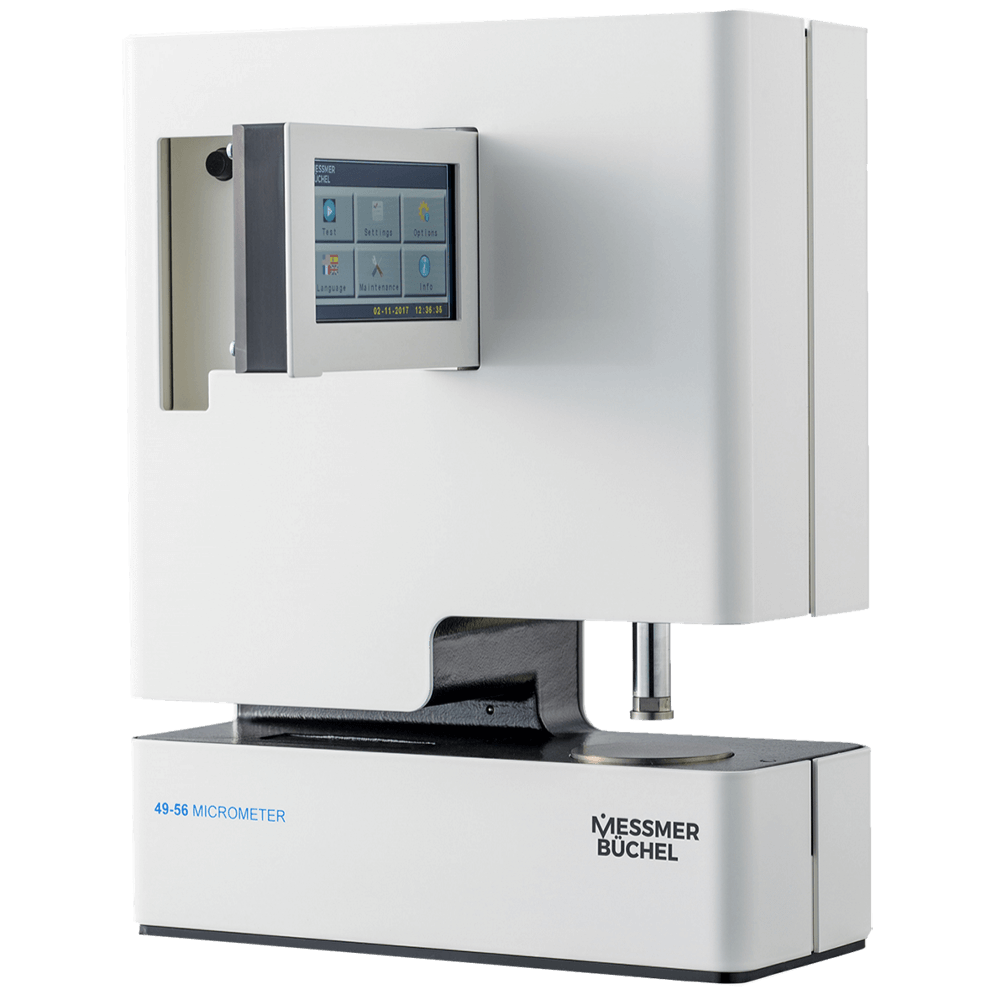

Messmer Büchel – Digital Micrometer – Model 49-56

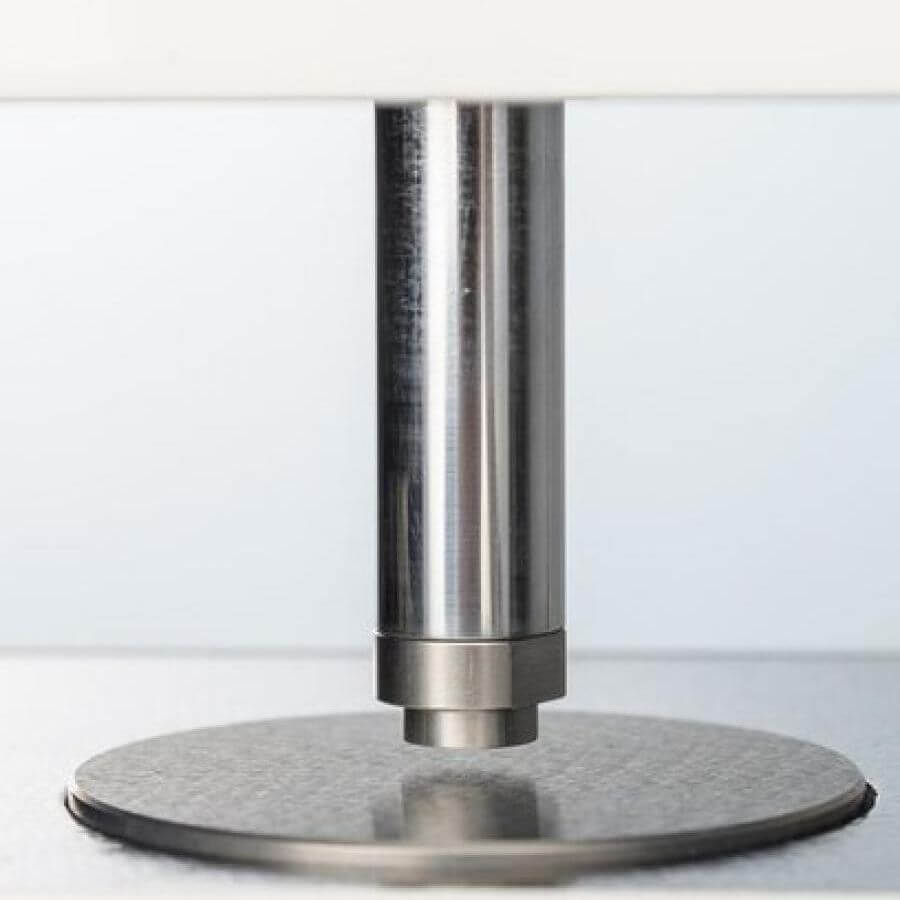

The model 49-56 Digital Micrometer combines unmatched accuracy and resolution with a modern contemporary look. The Micrometer can be configured to meet ISO, ASTM, TAPPI, EDANA or other international specifications. The Micrometer offers a cantilever balance system to allow low pressure measurements. This feature also allows adding or removing additional weights for multiple pressure applications. The instrument is supplied with a sensing eye next to the anvil. When a sample is detected the test cycle automatically starts.
Technical Specifications
| Model | 49-56 Series |
|---|---|
| Measuring units | μm, mm and mil |
| Measuring range | 0 – 10 mm; 0 – 10,000 μm; 0 – 394 mil |
| Accuracy | within 0.001 mm (0.00004 in.) or 1% of paper thickness, whichever is greater (Special configurations may influence accuracy) |
| Resolution | 1.0/0.1 μm, or on request (0.01 mil/0.001 mil) |
| Lowering speed | 0.8 -5.9 mm/sec |
| Dimensions (LxWxH) | 265 x 110 x 335 mm 10.4 x 4.3 x 13.2 inch |
| Weight | ± 13 kg (28.6 lbs) |
Key Features
Model 49-56
- Easy-to-use
- Small foot print
- Low foot pressure capabilities
- Units include, mm, μm, mil
- Optional strip feeder
- Suitable for multiple material applications
- Computer compatible with GraphMaster™ software
49-56 Micrometer
