Malvern Panalytical – Viscometry & Rheometry – DSR

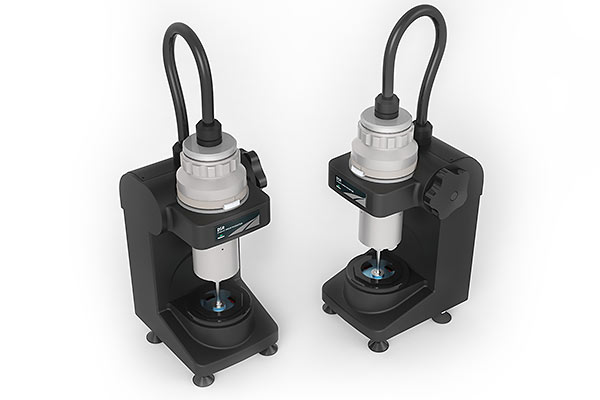

Market proven worldwide, the Malvern DSR dynamic shear rheometer has been specifically designed to satisfy the demands of high throughput grade testing of Asphalt binders (bitumen), to AASHTO (American Association of State Highway and Transportation Officials) industry standards.
DKSH is the exclusive distributor in Cambodia, Indonesia, Laos, Malaysia, Myanmar, Philippines, Singapore, Taiwan, Thailand and Vietnam.
Technical Specifications
| Torque range | 10 µNm to 10mNm (air bearing) 50 µNm to 10mNm (mechanical bearing) |
| Torque resolution | 1 µNm |
|---|---|
| Position resolution | 1 µrad |
| Frequency range | 10 µHz to 100 Hz |
| Temperature control range | 5°C to 95°C |
| Temperature accuracy | Better than ±0.1°C |
| Dimensions | 230 × 350 × 600 mm |
| Weight | 18 kg |
| Operating temperature | 15°C – 40°C |
| Operating humidity | 35% – 80% |
Key Features
- Compact, integrated unit designed specifically for ease of use and robustness in high throughput Asphalt binder (bitumen) test environments
- Developed to meet all instrument criteria and test protocols of AASHTO standards
- Excellent temperature stability and accuracy, with a resolution of ± 0.01°C.
- Rapid thermal equilibration and elimination of thermal gradients in the sample – essential for consistent and reliable data, and optimized sample throughput.
- Active thermal mode to ensure constant gap is maintained for all temperature test points.
