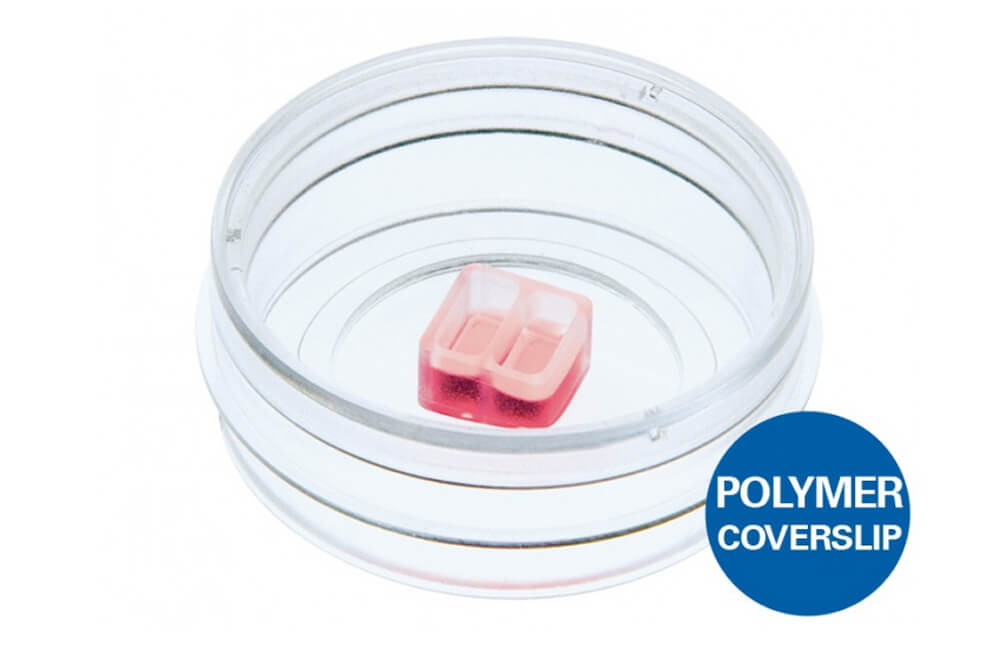

Ibidi – Labware – Culture-Insert 2 Well in µ-Dish 35 mm
Product outline:
- 2 well silicone insert with a defined cell-free gap, suitable for wound healing, migration assays, 2D invasion assays, and co-cultivation of cells
- Complete solution for wound healing experiments, requiring only a few steps from sample preparation to image analysis

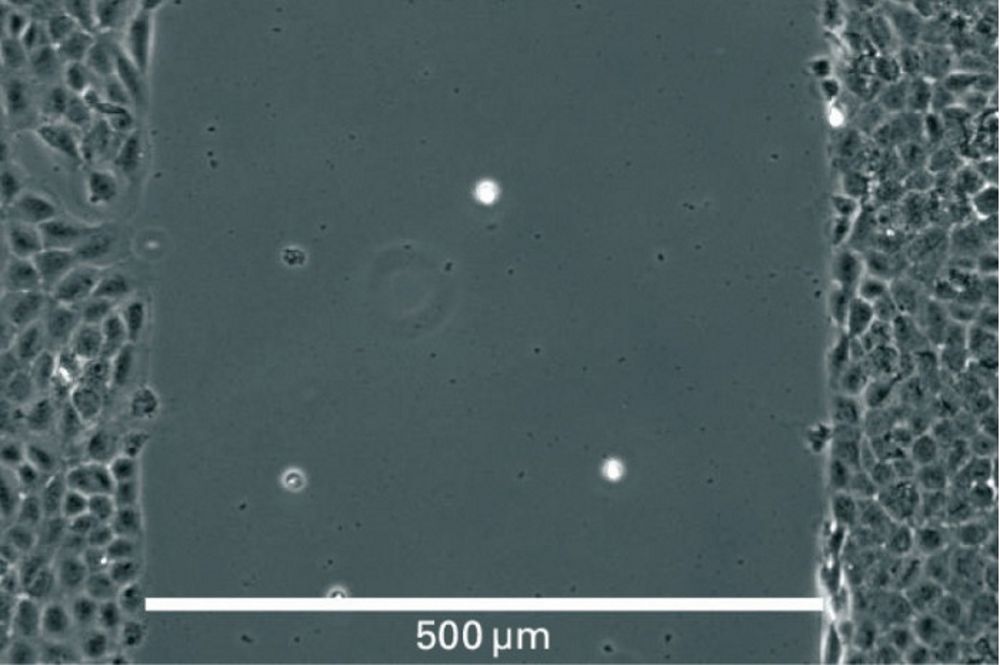

- Reproducible experiments owing to a defined 500 µm cell free gap, no leakage during cultivation, and no material being left behind after the insert’s removal
- Individual inserts for single experiments
- Ideal cell growth on ibiTreat surface
Applications
- Wound healing assays
- Migration assays
- 2D invasion assays
- Co-cultivation of cells
Technical Specifications
| Number of wells | 2 |
| Outer dimensions | 8.4 x 8.4 x 5 mm (w x l x h) |
|---|---|
| Volume per well | 70 µl |
| Growth area per well | 0.22 cm² |
| Coating area per well | 0.82 cm² |
| Width of cell free gap | 500 µm +/- 100 µm |
| Material | Biocompatible silicone |
| Bottom | No bottom – sticky underside |
Technical Features
- Culture-Insert 2 Well, pre-inserted into the µ-Dish 35 mm, high or µ-Dish 35 mm, low
- Biocompatible silicone material with adhesive underside
- Ready-to-use: the Culture-Insert is already placed in the µ-Dish 35 mm, high or µ-Dish 35 mm, low
- Clean surface after insert removal without remaining material
- Find full specifications and technical details here: µ-Dish 35 mm, high | µ-Dish 35 mm, low

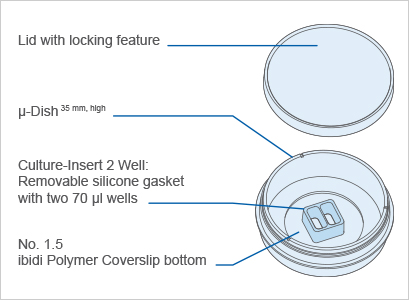

Culture-Insert 2 Well in µ-Dish 35mm, high

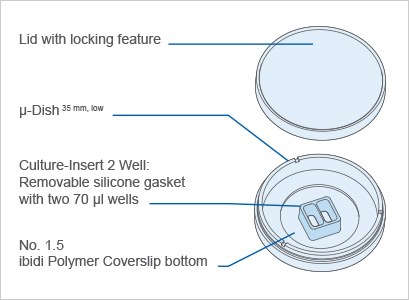

Culture-Insert 2 Well in µ-Dish 35mm, low

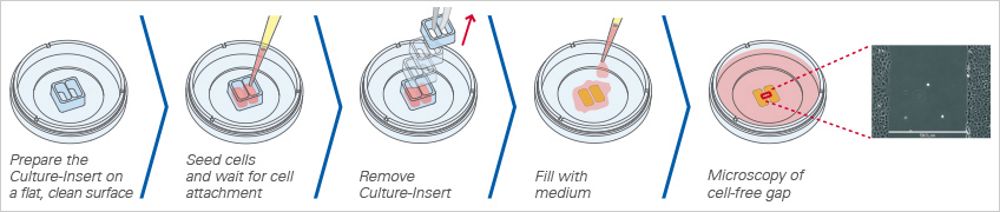

Principle for Wound Healing and Migration Assays
