ibidi – Labware – 8 Well Chamber, removable
Product outline:
- Chamber slide with a removable 8 well silicone chamber for cell culture and immunofluorescence staining
- The ideal chambered slide for cost-effective immunofluorescence assays and long-term sample storage
- Suitable for use with upright and inverted microscopes
- Large growth area combined with a small staining volume
Applications
- Immunofluorescence assays using standard coverslip techniques
- Long-term sample storage
- 8-fold sample preparation of adherent cells and tissue samples
Technical Specifications
| Number of wells | 8 |
| Dimensions of wells (w x l x h) in mm | 12 x 7.75 x 8.0 |
|---|---|
| Volume per well | 400 µl |
| Growth area per well | 0.93 cm² |
| Coating area per well | 2.63 cm² |
| Material | Biocompatible silicone |
| Suitable coverslip size | 24 mm x 60 mm |
| Bottom | Glass slide (26 x 76 x 1 mm) |

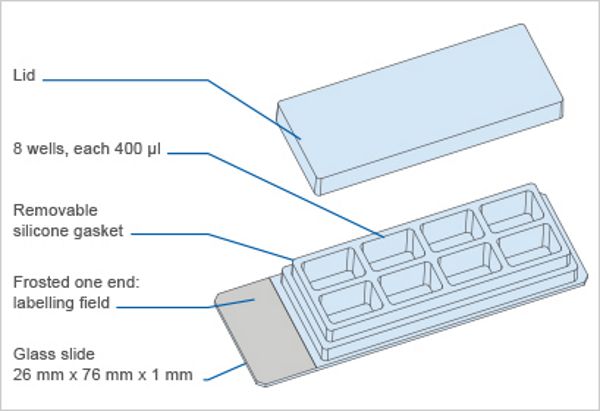

Technical Features
- Self-adhesive silicone gasket mounted on a standard glass slide
- Biocompatible silicone material
- Non-fluorescent glass slide with frosted ends for easy handling and labelling
- Suitable for use with upright and inverted microscopes, after staining and mounting with a coverslip
- Compatible with all common mounting media
- May require coating to promote cell attachment
- Optional: The gasket may be transferred to any flat clean surface for cell cultivation

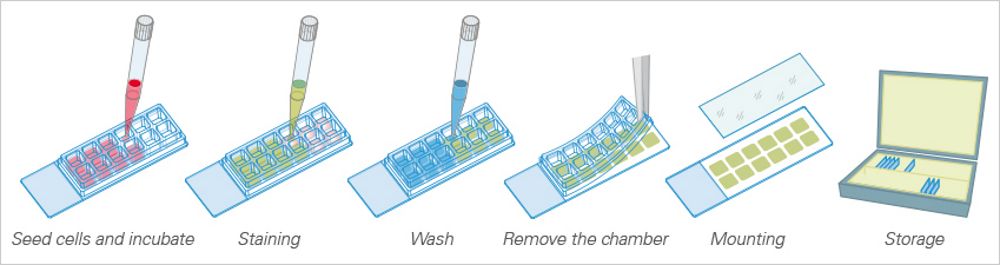

Standard Procedure 3 Well | 8 Well | 12 Well Chamber, Removable

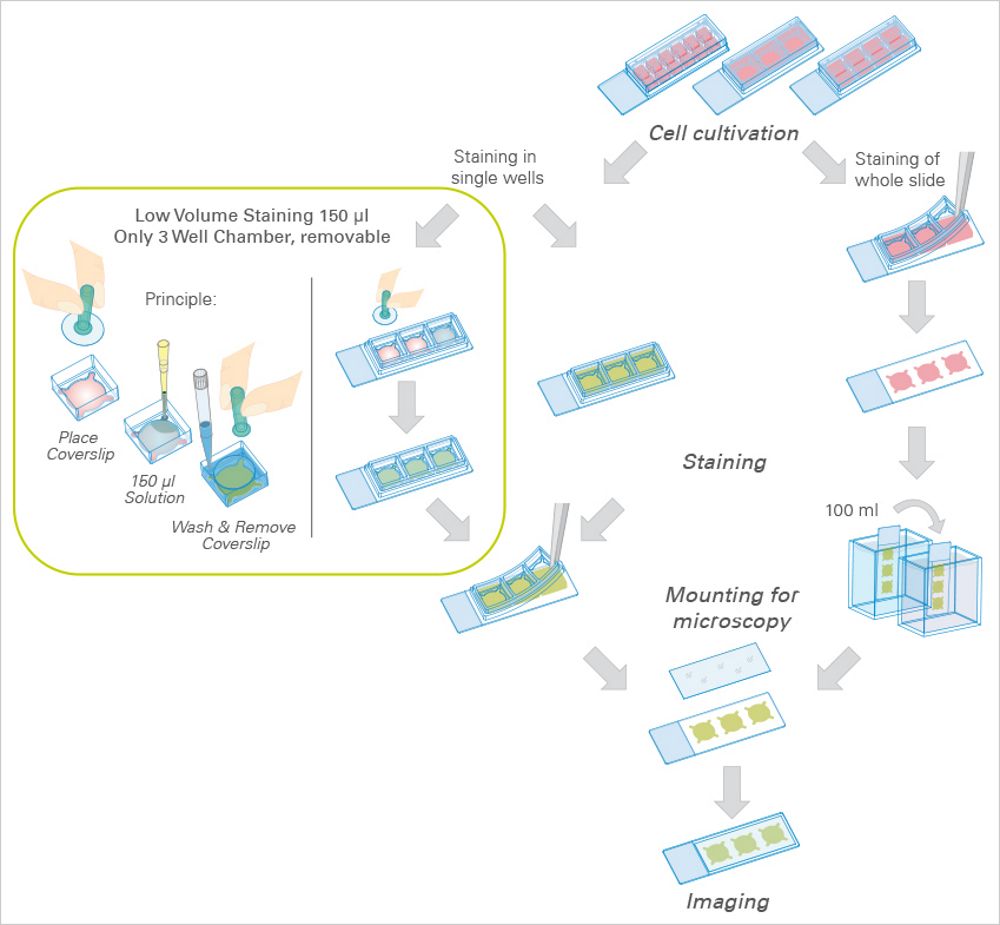

Staining Protocol
