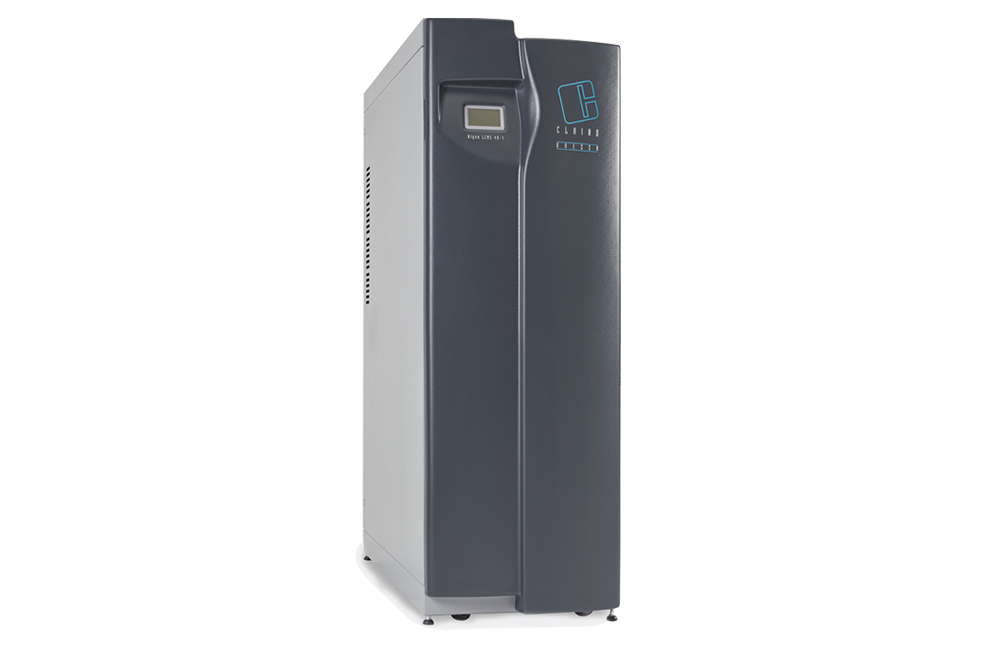

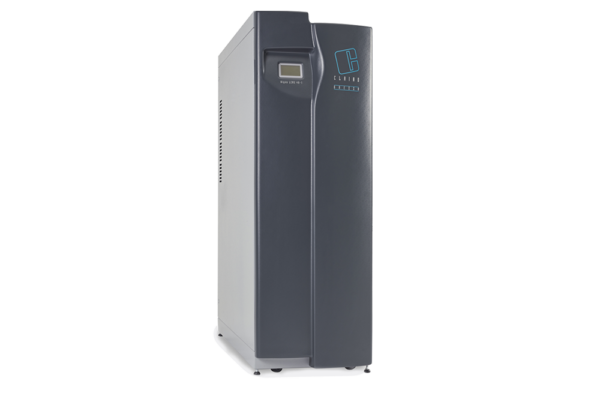

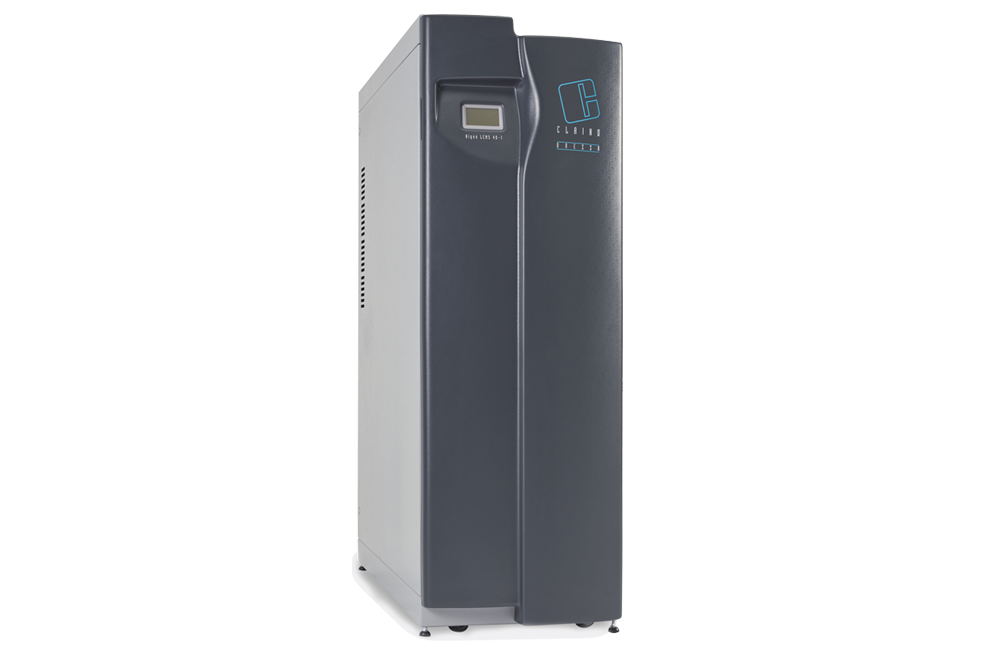

Claind – Nitrogen Generator – NiGen LCMS
- Designed to satisfy the needs of all LCMS analyzers on the market
- The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremelly pure nitrogen output (phthalate-free)
- Built-in compressor oil free including 2 x 50 l. tanks for Compressed Air and Nitrogen
- Highly reliabile Air compressor with maintenance required only after 16,000 hours of work
- 2 gas outlets available: UHP Nitrogen and Oil Free Air
Available Models
Technical Specifications
| Flow Rate | NiGen LCMS 40-1 : 38 Nl/min ± 10% a 2000 m asl |
| Technologies Employ | PSA CLAIND |
|---|---|
| Output Pressure | 0 – 7 bar/0 – 100 psi ± 3% |
| Purity | up to 99.9% |
| Compressor | Only in the version 40-1 |
| Air Input Characteristics | Particulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi |
| Electrical Supply X Lcms 40-1 | 115 Vac ± 10% 60 Hz 1,9 kW 230 Vac ± 10% 50 Hz 1,6 kW |
| Index Of Protection | IP20 |
| Noise | < 50 dBA during the stand by of the compressor < 65 dBA with compressor running |
| Operating Temperature | 5°C fino 35°C (41°F fino 95°F) |
| Environmental Humidity | max 90% without condensation |
| Dimensions | Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3” |
| Weight | 220 kg/489 lbs |
| Pneumatic Connections | Compressed air inlet: G 1/4” female Nitrogen output: G 1/4” female |
Key Features
- Designed to satisfy the needs of all LCMS analyzers on the market
- The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremelly pure nitrogen output (phthalate-free)
- Highly reliabile Air compressor with maintenance required only after 14,000 hours of work
- Able to supply up to 4 LC-MS analysers
- 40-1 version with special built-in full oil-free compressor
- The 50 lt each of air and nitrogen internal storage tanks mean less frequent air compressor starts, hereby reducing noise levels and maintenance
- CPU with Touch Screen Display allows the monitoring of operational status and menus with report alarms and functioning parameters
Technical Specifications
| Flow Rate | NiGen LCMS 100 : 100 Nl/min ± 10% a 2000 m asl |
| Technologies Employ | PSA CLAIND |
|---|---|
| Output Pressure | 0 – 7 bar/0 – 100 psi ± 3% |
| Purity | up to 99.9% |
| Compressor | Only in the version 40-1 |
| Air Input Characteristics | Particulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi |
| Electrical Supply X Lcms 100 | 115/230 Vac ± 10% 60/50 Hz 50 W |
| Index Of Protection | IP20 |
| Noise | < 50 dBA during the stand by of the compressor < 65 dBA with compressor running |
| Operating Temperature | 5°C fino 35°C (41°F fino 95°F) |
| Environmental Humidity | max 90% without condensation |
| Dimensions | Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3” |
| Weight | 200 kg/444 lbs |
| Pneumatic Connections | Compressed air inlet: G 1/4” female Nitrogen output: G 1/4” female |
Key Features
- Designed to satisfy the needs of all LCMS analyzers on the market
- The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremelly pure nitrogen output (phthalate-free)
- Highly reliabile Air compressor with maintenance required only after 14,000 hours of work
- Able to supply up to 4 LC-MS analysers
- The 50 lt each of air and nitrogen internal storage tanks mean less frequent air compressor starts, hereby reducing noise levels and maintenance
- CPU with Touch Screen Display allows the monitoring of operational status and menus with report alarms and functioning parameters
