Binder – Drying and Heating Chambers – Series FD Avantgarde.Line – With forced convection
A BINDER FD series Avantgarde.Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Key Features
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to 300 °C
BINDER Heating Chambers With Forced Convection For Quality and Reliability
BINDER’s heating chambers with forced convection operate within a temperature range of between 5 °C and 300 °C, allowing them to be adapted to suit various requirements. The patented APT.line™ preheating chamber technology guarantees homogeneous temperature distribution in the interior, so you can be sure that sample conditions are consistent across the entire usable space, regardless of the amount or size of the sample. Low heat dissipation means that the heating chambers are highly energy-efficient despite performance being increased.
BINDER Heating Chambers For Efficiency, High Performance, and Ease of Use

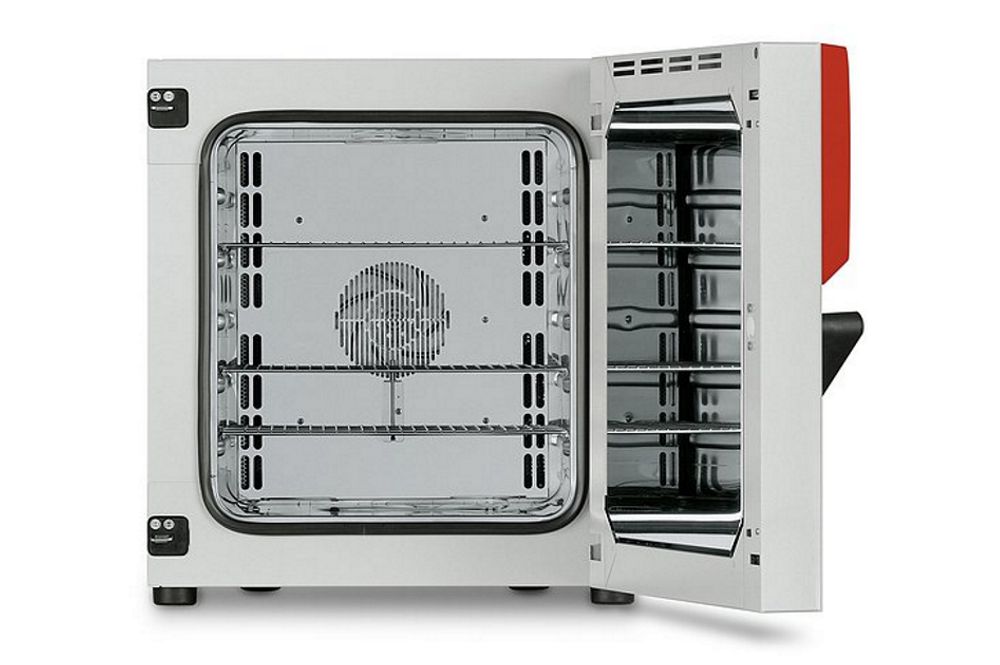

BINDER’s FD series brings you maximum quality and precision when the heating chambers are put to use in practice, guaranteed by high production standards in line with DIN 12880 along with premium material and finish quality. What’s more, the chamber can be cleaned with ease thanks to the stainless steel finish of the interior as well as the lack of built-in fixtures there. To facilitate loading and unloading, the heating chambers are fitted with racks that come with anti-tilt protection.
With BINDER heating chambers with forced convection, not only are you getting the benefits of their high performance, functionality, and process reliability, you can also enjoy these units’ excellent usability, as they are intuitive and easy to work with.
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |

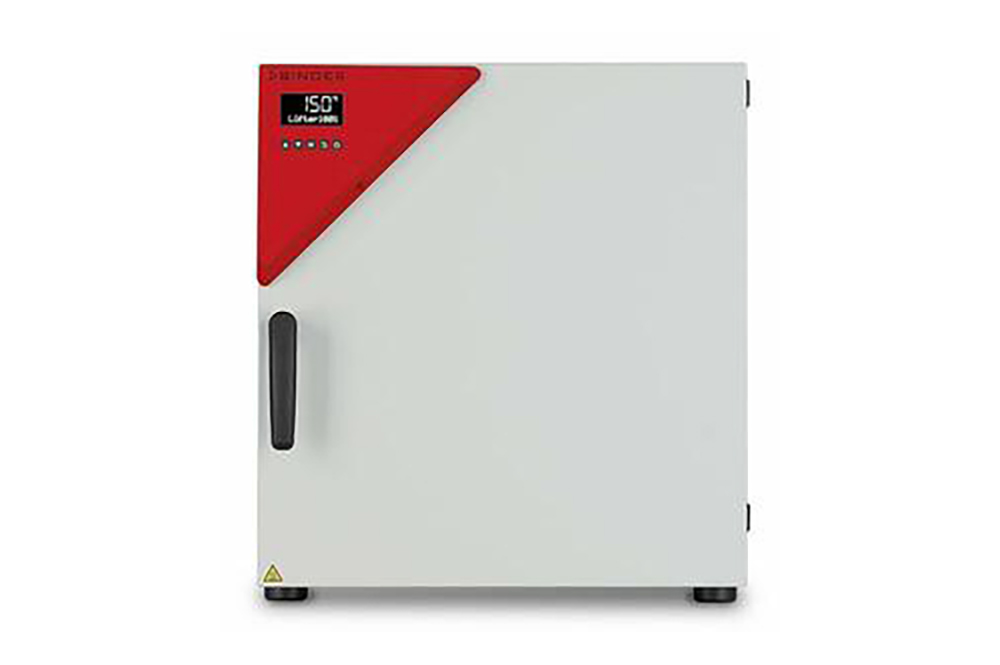

| FD 56 | 560 x 625 x 565 mm | 400 x 440 x 345 mm | 41 kg | 60 L |
| FD 115 | 710 x 735 x 605 mm | 550 x 550 x 385 mm | 57 kg | 116 L |
| FD 260 | 810 x 965 x 825 mm | 650 x 780 x 515 mm | 85 kg | 259 L |

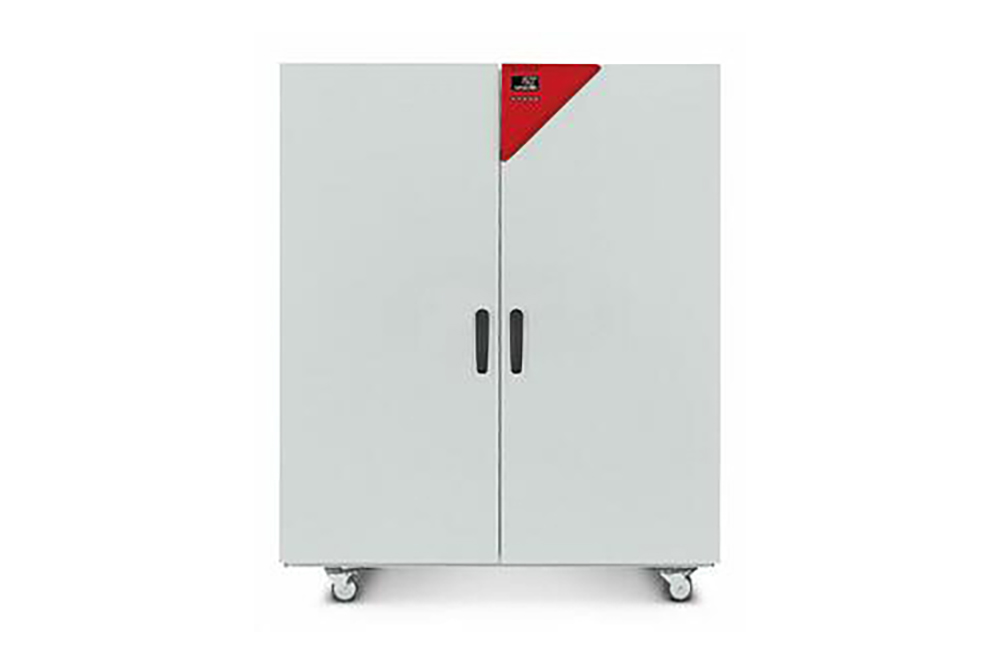

| FD 720 | 1165 x 1590 x 870 mm | 1000 x 1300 x 570 mm | 166 kg | 741 L |
| FD 23 Classic Line | 435 x 495 x 520 mm | 222 x 330 x 300 mm | 27 kg | 20 L |
Available Models
- Temperature range: ambient temperature plus 10 °C to 300 °
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
- Temperature range: ambient temperature plus 10 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
- Temperature range: ambient temperature plus 10 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
- Temperature range: ambient temperature plus 10 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
APT.line™ Avantgarde Air Flow Technology
Binder From The Inside – See What Happens Behind The Scene
Key Industries
- Education & Academics
- Food & Beverage
- Pharmaceutical
- Service
