Binder – Constant Climate Chambers – Series KBF P – With ICH-compliant light source
The KBF P constant climate chamber, equipped with ICH-compliant light source, is an expert when it comes to photostability tests and ensures clear test results in accordance with ICH Guideline Q1B. At the same time, the variable-position illumination cassettes offer homogeneous lighting conditions.
Key Features
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Variable position and removable illumination cassettes
- ICH-compliant illumination for long-term stable test conditions
Humidity Test Chambers With ICH-Compliant Light Source
BINDER is a supplier of state-of-the-art Humidity test chambers. In its KBF-P series, BINDER has developed Humidity test chambers with ICH-compliant light source, which combine high performance and versatile functionality with compliance with standards.
KBF-P Humidity test chambers have been designed specifically for photostability testing, providing an all-round solution in a single chamber you can rely on.
Humidity Test Chambers With Unique Light Concept
Complete with ICH-compliant light source, the BINDER Humidity test chambers in the KBF-P series comply with ICH Guideline Q1B, Option 2. They feature height-adjustable illumination cassettes and, thanks to the patented Synergy Light system, homogeneous light distribution over the entire usable area. The patented APT.line™ preheating chamber technology, meanwhile, ensures optimum homogeneous temperature conditions. Humidity is regulated using a capacitive humidity sensor and steam humidification. These climate chambers can be used within a temperature range of between 0 °C and 70 °C, or between 10 °C and 60 °C with light. They operate within a humidity range of between 10% RH and 80% RH.
With their unique light concept, precise climate conditions, and quick, accurate illumination, BINDER Humidity test chambers with ICH-compliant light source deliver the best results. The high levels of performance and functionality offered by these Humidity test chambers from BINDER are combined with ease of handling and a durable, robust quality.
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |

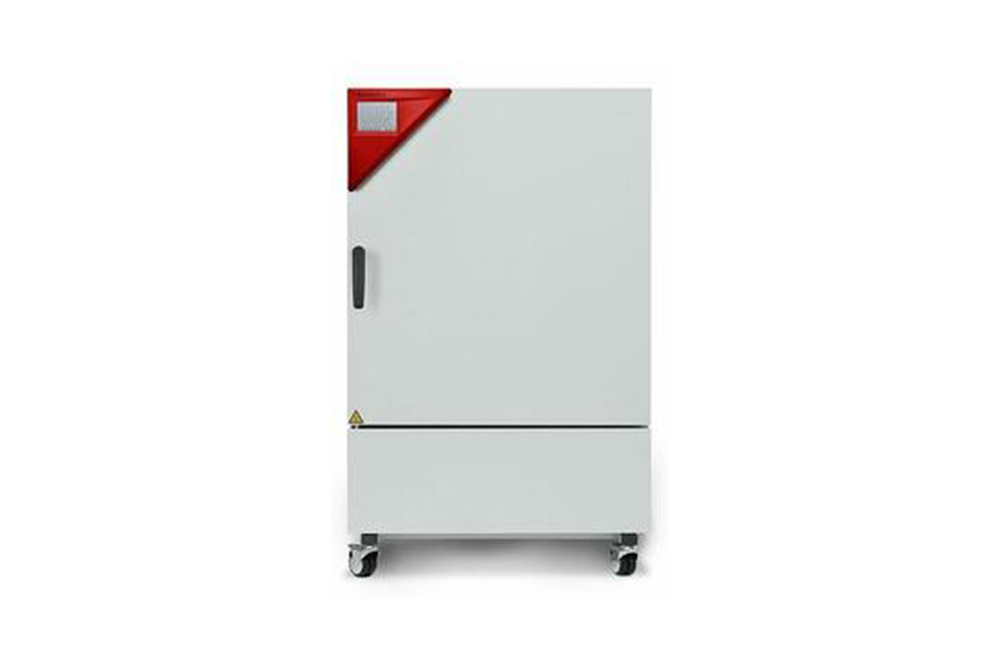

| KBF P 240 | 925 x 1460 x 800 mm | 650 x 785 x 485 mm | 213 kg | 247 L |

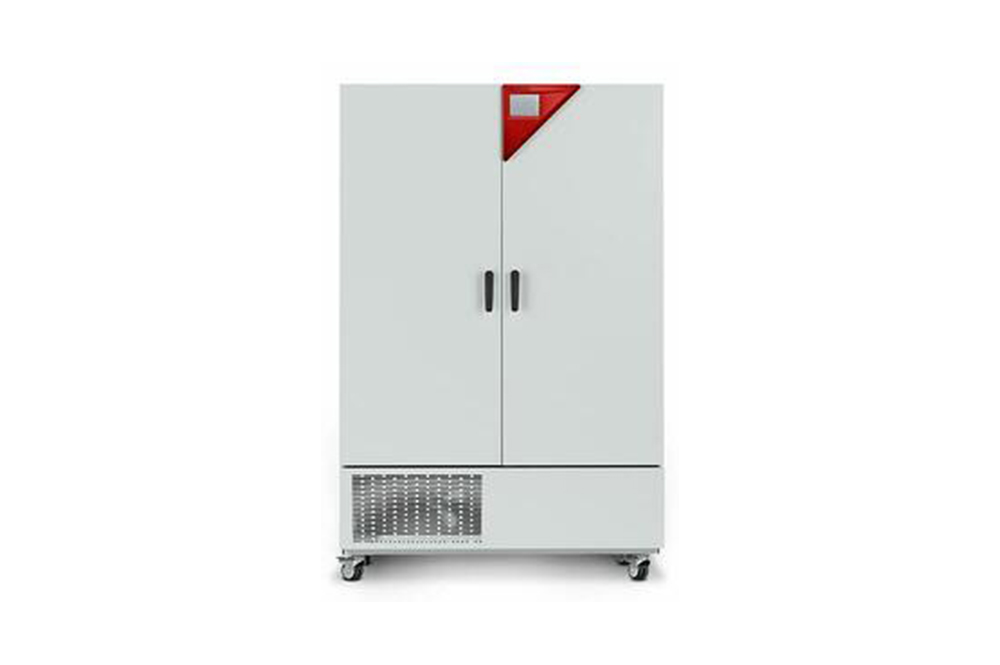

| KBF P 720 | 1250 x 1925 x 890 mm | 973 x 1250 x 576 mm | 374 kg | 700 L |
Available Models
- Temperature range: 0 °C to 70 °C
- Temperature range with light: 10 °C to 60 °C
- Humidity range: 10 % to 80 % RH
- 2 positionable illumination cassettes with ICH-compliant UV/Vis light source
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Inner chamber made of stainless steel
- BINDER Multi Management Software APT-COM™ Basic Edition
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- 4 stable castors, two with brakes
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
- Temperature range: 0 °C to 70 °C
- Temperature range with light: 10 °C to 60 °C
- Humidity range: 10 % to 80 % RH
- 3 positionable illumination cassettes with ICH-compliant UV/Vis light source
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Inner chamber made of stainless steel
- BINDER Multi Management Software APT-COM™ Basic Edition
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- 3 stainless steel racks
- Access port with silicone plug, 30 mm, left
- 4 stable castors, two with brakes
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
