Messmer Büchel (Messmer Buchel)

Small and Easy to Handle

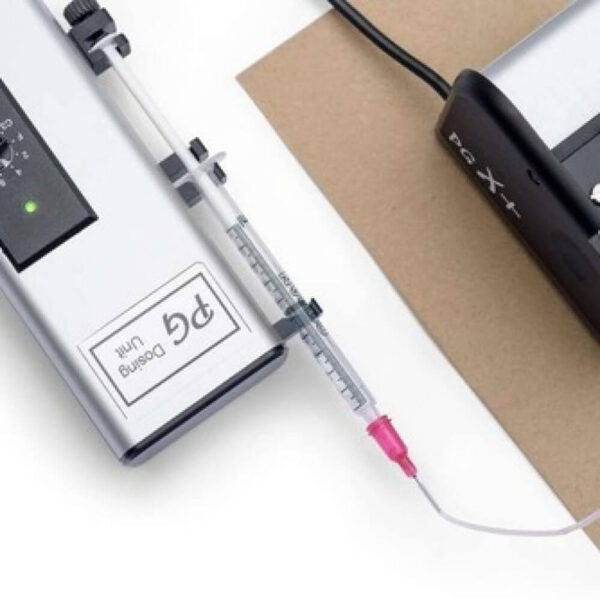

The PGX+ measures contact angle (dynamic and static), surface tension, and surface energy. The PGX+ makes a drop in µl according to the size that is set. The drop is automatically released and 80 images per second are made. The instrument is used for paper & board, solar cell panels, windshields, metal cylinders and similar surfaces. For most tests deionized water is used, however using other liquids is also possible. Contact us if you want to use any other liquids.

Test Results

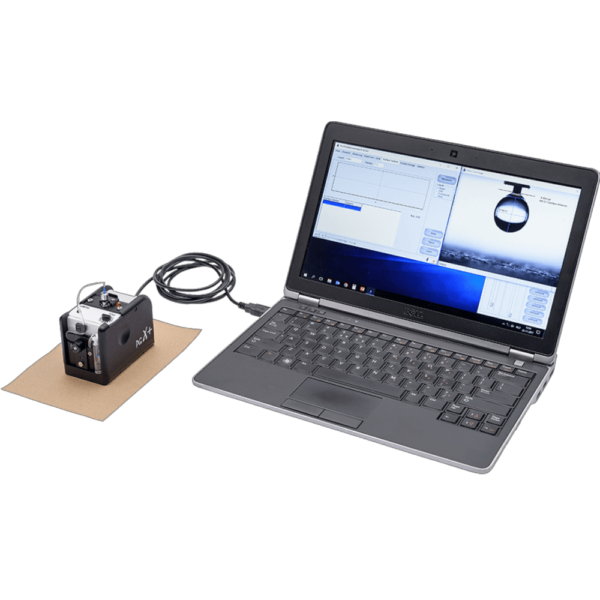

During testing the instrument is connected to the special PC software. The software gives you an easy overview of the possible tests. During the test the data transferred to the computer. The pictures taken and the results can be stored and analyzed. Thanks to the direct feedback, adjustments to improve the results can easily be made.

Compression Strength

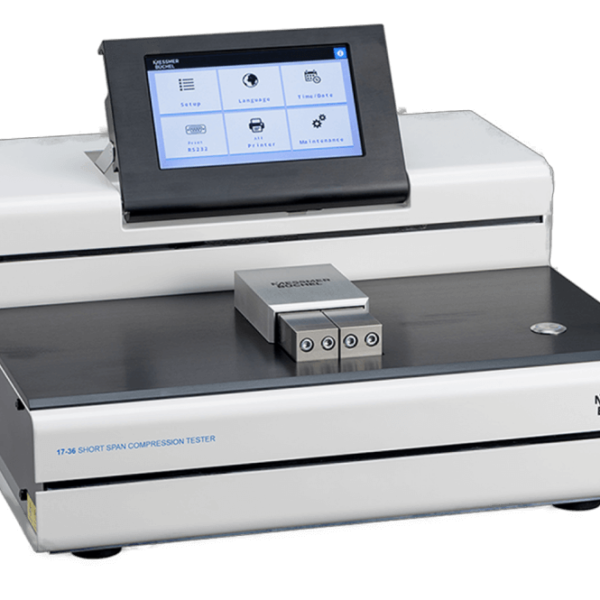

The 17-36 Short Span Compression Tester measures the compression strength of paper and board. The distance or free span can be set from 0.3 – 0.7mm (steps of 0.1). When performing a compression test on such a short distance the stability of the clamps and instrument is very important. The 17-36 Short Span directs all the forces of the clamped sample to the load cell, making it one of the most accurate instrument available on the market.

Test Results

Edgewise compressive strength also referred to as Short Span Compression (SCT) was developed in 1980 as an improved method to measure buckling and compressive failures of paper and board. Short Span Compression is considered an important property and can be used to predict the performance of container board used in the manufacture of corrugated boxes.
