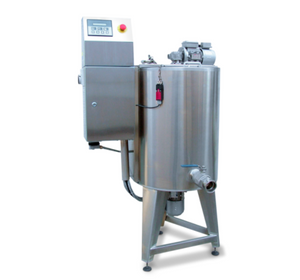

Armfield FT140 Multipurpose Mixing Vessels are designed and constructed using high-quality hygienic industry standard materials. These tanks are available in three models in varying configurations (see table) and are available in 50l and 100l volumes. All three models have an internal surface made of AISI 316 stainless steel.

The Armfield FT141 and FT142 are versatile batch processing vessels, the FT142 having UHT capability. They are suitable for high shear mixing, dispersing, homogenising, emulsifying, evaporation and vacuum deaerating.

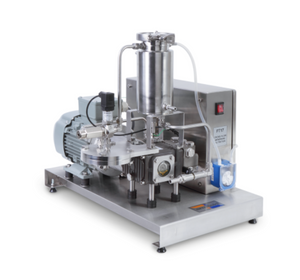

The Armfield FT17 is a lab-scale system for evaluating membranes in a cross-flow filtration application enabling rapid determination of cross flow filtration performance using a range of membrane types with small product volumes (1 litre). It can also be used in teaching applications to demonstrate features of different membrane types and the effect of varying filtration variables.

The FT174X is a modular HTST/UHT processing system designed to treat products at flow rates of 12-40 l/hr or up to 60 l/hr for water (or similar low viscosity products). Standard modules for direct heating (steam injection) or indirect heating (using tubular and/or plate heat exchangers), aseptic processing, upstream or downstream homogenisation and additional chilling are available. These, along with many other options, enable multiple modules to be included in the same system, giving high process adaptability by reconfiguration of flexible product hoses, using quick-release connections. The sterilisation options enable it to be linked to an Armfield sterile filling bench to produce aseptic product, even when using long holding tubes and/or downstream homogenisation. As with all Armfield systems, it comes with hygienic fittings throughout as standard, it is easy to clean and very flexible in use. The touchscreen control panel makes it extremely user friendly to configure and monitor processing parameters. The operator is prompted at every stage whenever intervention is required.
